Heat Resistant Powder Coatings

With range up to 560°C

STOVE BRIGHT® HEAT RESISTANT POWDER COATINGS

Stove Bright® Heat Resistant Powder Coatings

FORREST Heat Resistant Powder Coatings provide excellent corrosion resistance, abrasion resistance, and colour retention. High temperature powder coatings maintain aesthetic appeal and corrosion resistance over long-term use. FORREST offers high temperature aerosols for touch up on powder-coated surfaces.
Below are examples of the many high temperature powder coatings products available. Our technical service representatives will work with you to find the right product for your application. Custom formulations are also possible with the help of our powder coating R&D laboratory.

USE CASES FOR Stove Bright® HIGH TEMPERATURE POWDER COATINGS

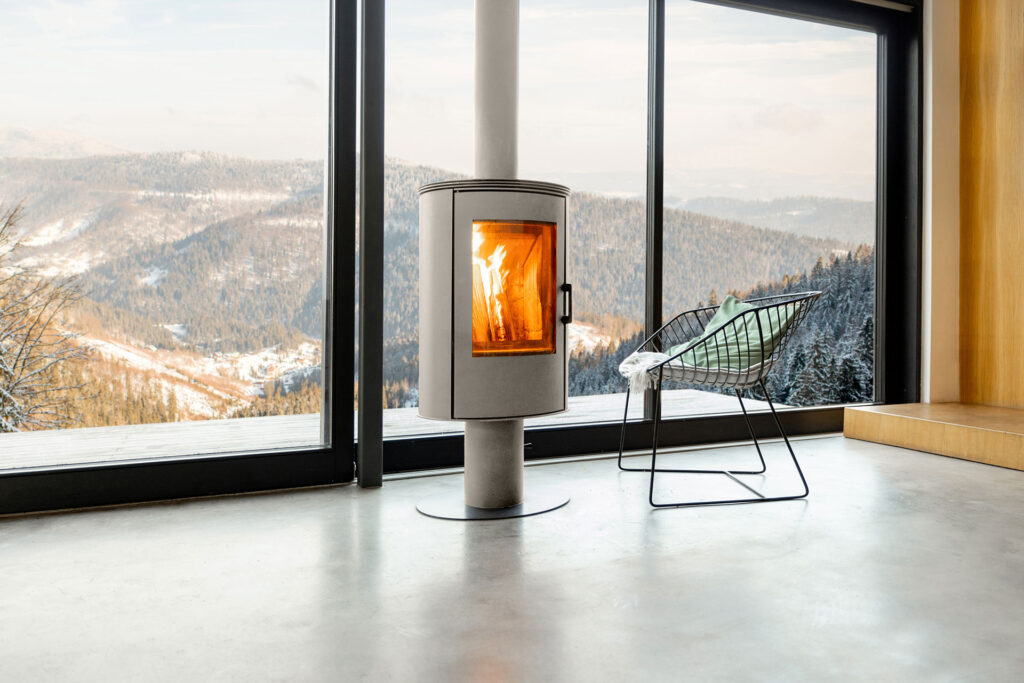

Wood and gas stoves
Pellet stoves
Stove pipes
BBQs
Generators

BENEFITS OF Stove Bright® HIGH TEMPERATURE POWDER COATINGS

Excellent adhesion
Excellent delamination resistance
Corrosion protection
Excellent weathering protection

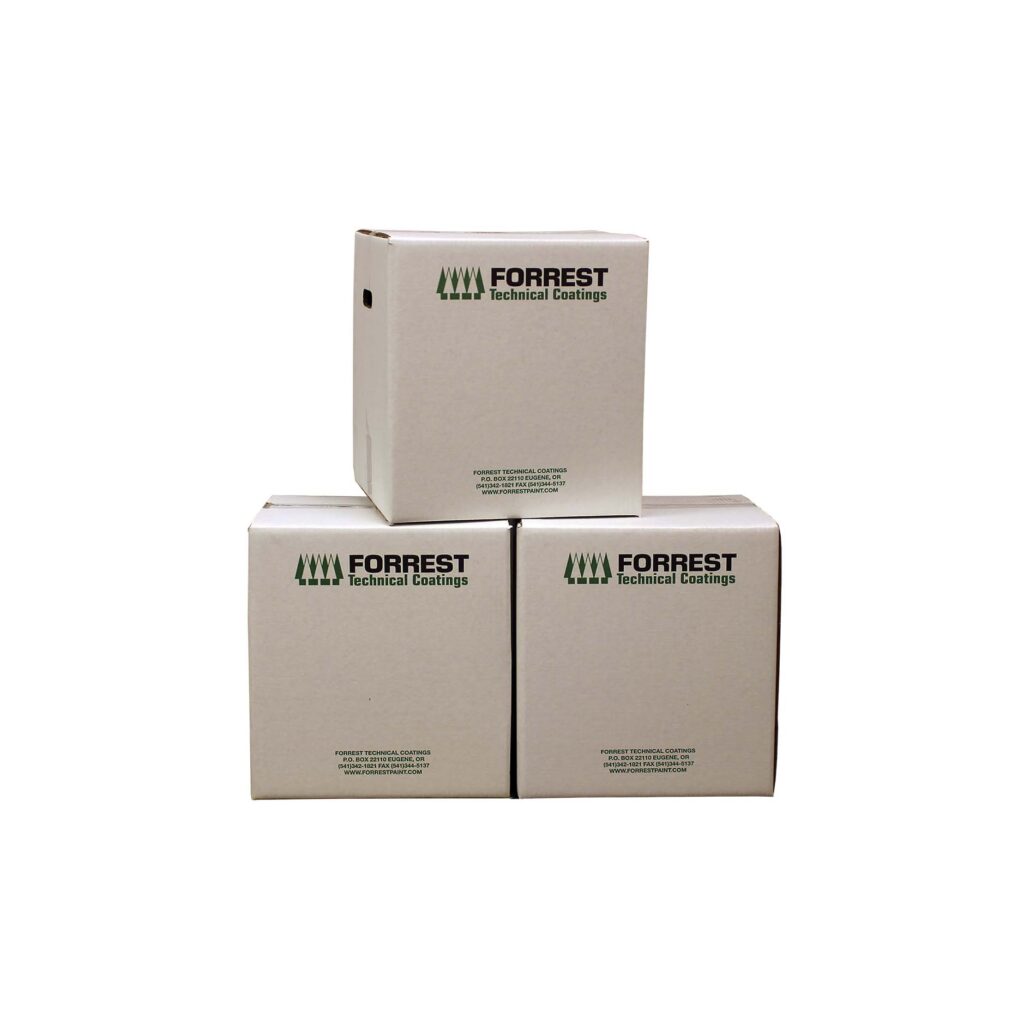

Available in 20KG boxes

Heat Resistant Powder Coatings: 250 °C

Coating heat resistance rating should match the peak and operating temperature of the product. A technical representative will assist in selecting a product with the correct heat resistance.

	Product Description	Peak Temperature	Continuous Temperature	Gloss @ 60° (ASTM D523-14)	Cure Schedule	Notable Benefits	Testing Conditions
1PC-619 Series	An interior black high temperature powder coating for temperatures up to 250C	316 °C	260 °C	2-5	204°C for 10 mins	Medium heat resistance Excellent surface hardness at service temperature Excellent flow and product stability	Substrate: Cold Rolled Steel Film thickness: 2.0 mils (50.8 µm)

High Temperature Powder Coatings: up to 300 °C

	Product Description	Peak Temperature	Continuous Temperature	Gloss @ 60° (ASTM D523-14)	Salt Spray (ASTM B117/D1654)	Cure Schedule	Notable Benefits	Testing Conditions
1PL-630PC10 Series	Bright White High Temp	472°C	(TBD)	45-55	–	232°C for 30 mins	Enhanced charging and handling characteristics Provides good flow and leveling over a wide range of film thickness Designed to be more compatible and to reduce cross contamination with other coatings	Substrate: Cold Rolled Steel Film thickness: 1.5-2.5 mils (38 – 64 μm)

Extreme High Temperature Powder Coatings: up to 550 °C

	Product Description	Peak Temperature	Continuous Temperature	Gloss @ 60° (ASTM D523-14)	Salt Spray (ASTM B117/D1654)	Cure Schedule	Notable Benefits	Testing Conditions
654-2199 Muffler Black Also sold as: INFERNEX® PS-1000	Smooth black high temp	537°C	471°C	12 – 18	240+ Hrs	232°C for 20 mins	High temperature resistance Excellent application properties and film quality Excellent over-bake stability	Substrate: Cold Rolled Steel Film thickness: 1.5-2.5 mils (38.1 – 63.5 μm)
1PC-654-2502 Also sold as: INFERNEX® PS-800	Satin jet black and smooth sheen with outstanding hardness.	538°C	426°C	25-35	–	232°C for 10 minutes	Exterior performance with UV stability Excellent over-bake stability Designed for reduced cross contamination risk	Substrate: Cold Rolled Steel (Q-panels) Film thickness: 1.5 – 2.5 mils (38.1 – 63.5 µm)
654-2154A Flat Black	A decorative flat black high temp powder coating	560°C	427°C	< 4	–	204°C for 15 minutes	Extended coverage per pound Excellent over-bake stability Designed for reduced cross contamination risk	Substrate: Cold Rolled Steel (Q-panels) Film thickness: 1.5 – 2.5 mils (38.1 – 63.5 µm)

Stove Bright® Colour Card

Scroll through the colours below to see what Stove Bright® colours look like on a wood or gas stove. Keep in mind that monitor settings affect colour. Reference our High Temperature Powder Colour Card for a more accurate depiction of colour and consult with a Stove Bright® agent prior to purchase. Stove Bright® temperature resistant varies with colour.
